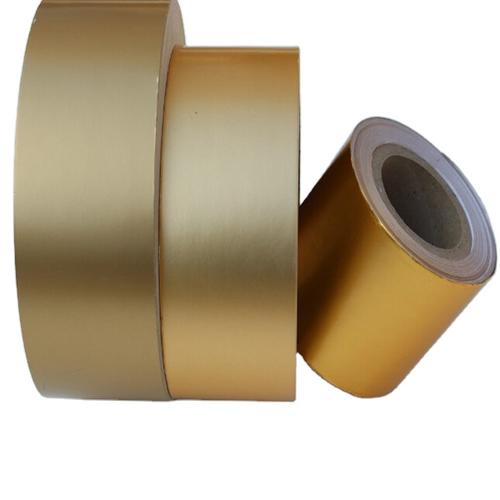

Heat seal coating for paper is a specialized polymer-based layer applied to paper substrates to enable thermal bonding. This coating activates at specific temperatures (typically between 80°C to 150°C) and creates a hermetic seal when pressure is applied. The coating thickness usually ranges from 3 to 20 microns, with a basis weight of 5-30 g/m², depending on application requirements.
Key characteristics of heat seal coatings include:
Seal Strength: Ranges from 200-800 g/25mm (measured by ASTM F88), with high-performance formulations reaching 1,200 g/25mm
Activation Temperature: 80-150°C, with precise ±5°C control in industrial applications
Seal Time: As low as 0.2 seconds for high-speed packaging lines
Barrier Properties: Moisture vapor transmission rates (MVTR) as low as 0.5 g/m²/day (at 38°C, 90% RH)
Chemical Resistance: Withstands pH ranges from 3 to 11 without degradation
Heat seal coated papers serve critical functions across multiple industries:
Used for:
Snack bags requiring ≥400 g/25mm seal strength
Bakery products needing 120-140°C sealing temperatures
Frozen food packaging with -40°C to 120°C temperature resistance
Blister packs with 0.5-1.0 N/mm² peel strength
Sterile medical packaging requiring >800 g/25mm seal integrity
Tamper-evident seals with ≥60% fiber tear upon opening
Electronics packaging with 10^12 Ω·cm surface resistivity
Moisture-sensitive component wraps with ≤0.8% water absorption
Automotive part packaging requiring 150°C heat resistance
Cosmetics packaging with 20-30 micron coating thickness
Detergent sachets needing pH 9-11 resistance
Premium gift boxes requiring gloss levels >80 GU
Proper care ensures optimal performance of heat seal coated papers:
Maintain 20-25°C temperature with 40-60% RH
Stack height should not exceed 1.5 meters to prevent blocking
Use within 6-12 months of manufacturing (shelf life varies by formulation)
Pre-condition materials at 23±2°C for 24 hours before use
Adjust sealing jaws to 0.2-0.5 N/mm² pressure
Maintain 10-20% compression of coating thickness during sealing
Clean heat bars every 8 operating hours with 200-grit silicone carbide paper
Calibrate temperature sensors weekly with ±1°C accuracy
Replace Teflon® covers after 50,000 cycles or when surface roughness exceeds 0.8 µm Ra
For weak seals (<300 g/25mm): Increase temperature by 5-10°C or dwell time by 0.1s
For coating transfer (>5%): Reduce temperature by 5°C and increase pressure by 0.1 N/mm²
For uneven seals: Check jaw parallelism within 0.02 mm/m tolerance
