Heat Seal Paper Pouch: Properties, Applications, and Maintenance

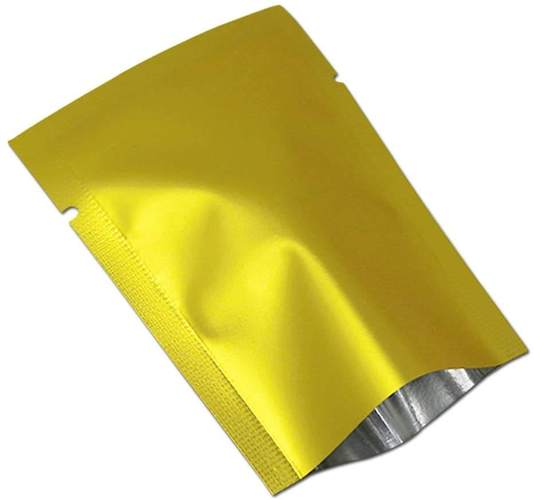

What is a Heat Seal Paper Pouch?

A Heat Seal Paper Pouch is a specialized packaging solution constructed from heat-sealable paper materials, designed to create an airtight and tamper-evident seal when exposed to controlled heat (typically 120-180°C for 1-3 seconds). These pouches combine the structural integrity of paper (basis weight: 60-120 gsm) with thermoplastic coatings (e.g., LDPE or PP layers of 15-30 microns) to achieve seal strengths of 3-8 N/15mm width (ASTM F88 test standard). The material composition typically includes:

• Outer Layer: Bleached or unbleached kraft paper (70-90 gsm) for printability and rigidity

• Barrier Layer: Optional aluminum foil (6-12 microns) or SiO_x coating for enhanced protection

• Sealant Layer: Low-temperature sealable polymers with melting points between 90-110°C

Primary Characteristics

1. Thermal Performance: The pouches demonstrate consistent seal integrity within a temperature range of -20°C to 60°C, with heat distortion resistance up to 120°C for short durations (ISO 306 standards). The heat seal layer activates at 110-130°C (measured via differential scanning calorimetry) with a dwell time of 1.5-2.5 seconds under 0.2-0.4 MPa pressure.

2. Mechanical Properties: Tensile strength ranges from 30-50 MPa (MD) and 20-40 MPa (CD) according to ISO 527-3, with elongation at break of 4-8%. Tear resistance measures 300-600 mN (Elmendorf method, ISO 6383-1).

3. Barrier Performance: Standard versions provide water vapor permeability of 8-12 g/m²/24h (38°C, 90% RH, ASTM E96). High-barrier variants with metallization achieve OTR values below 1 cm³/m²/day and MVTR under 0.5 g/m²/day.

4. Printability: Surface energy of 38-42 dynes/cm (ASTM D2578) enables excellent ink adhesion, with print resolution up to 175 lpi. The substrate accepts flexographic, gravure, and digital printing methods.

Application Scenarios

1. Medical Packaging: Used for sterilizable pouches (ISO 11607 compliant) with ethylene oxide or gamma radiation resistance. Typical applications include surgical instrument packaging with validated seal strengths >3.5 N/15mm.

2. Food Industry: Suitable for dry foods (aw < 0.65) with compliance to FDA 21 CFR 176.170. Common uses include tea bags (seal width ≥3mm), coffee pouches (with 3-layer structure), and bakery products (oxygen transmission <100 cc/m²/day).

3. Electronics: ESD-safe versions with surface resistance of 10⁶-10⁹ ohms (ANSI/ESD S541) for sensitive components. Moisture barrier properties maintain <10% RH internal humidity for moisture-sensitive devices (IPC/JEDEC J-STD-033).

4. Industrial Parts: Heavy-duty variants (200-300 gsm basis weight) with puncture resistance >15 N (ASTM F1306) for automotive components. Often incorporate tear notches with initiation force <5 N.

Maintenance and Handling Guidelines

1. Storage Conditions:

• Maintain at 15-25°C with 40-60% relative humidity (ISO 2230)

• Stack height should not exceed 1.5m to prevent compression deformation

• Rotate stock using FIFO system within 12 months of manufacture

2. Sealing Process Control:

• Calibrate heat sealers quarterly (temperature accuracy ±3°C)

• Conduct seal integrity tests (ASTM F1929 dye penetration) every production shift

• Maintain jaw pressure at 0.3-0.6 MPa for consistent seal formation

3. Quality Assurance:

• Perform burst testing (ASTM F1140) with minimum 200 kPa requirement

• Verify seal peel strength (2.5-8 N/15mm) using 180° peel test at 300 mm/min

• Monitor for delamination (bond strength >1.5 N/15mm between layers)
